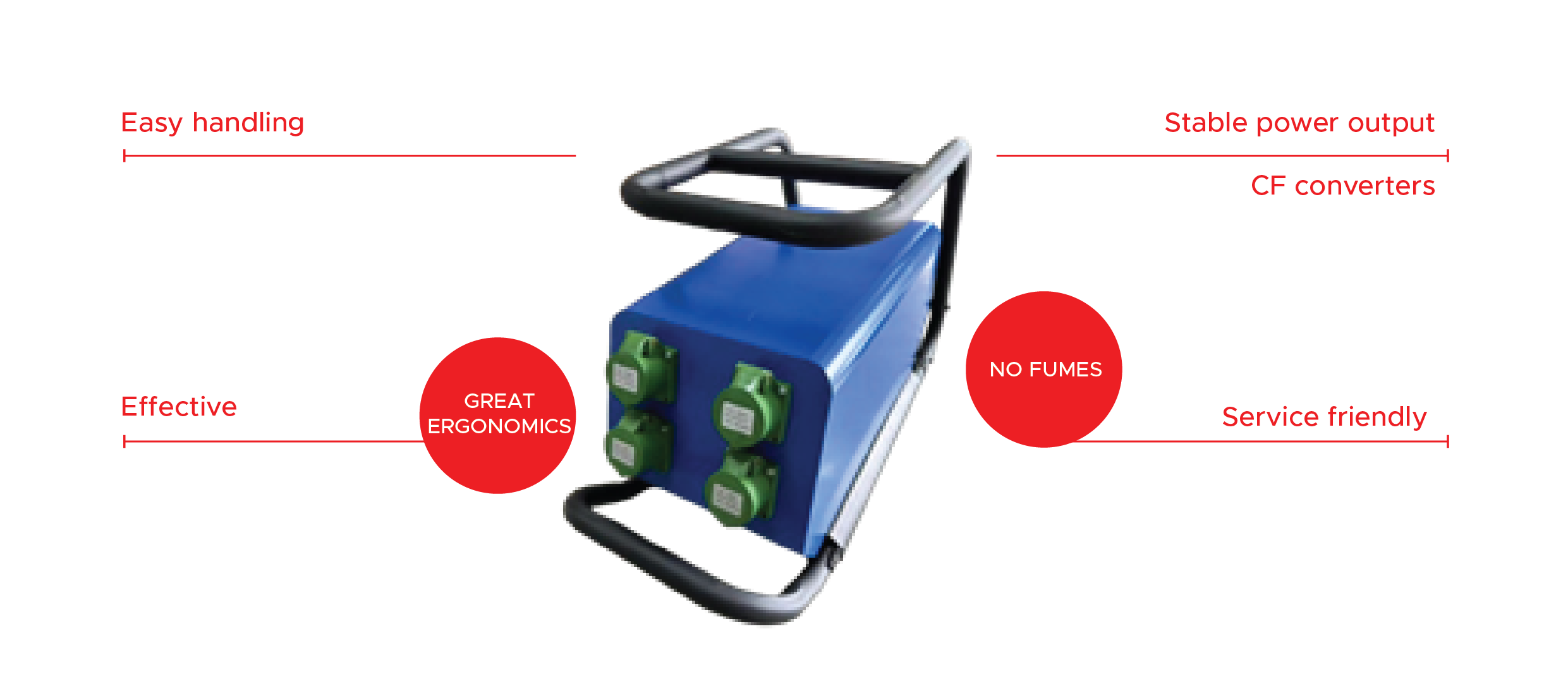

TEK-HFC SERIESHIGH FREQUENCY CONVERTORS
Electric frequency converters and engine driven generators have several advantages. To begin with they can supply several pokers with power simultaneously. The electric rotary frequency converters come with 1,2 or 4 outlets and our generators are available with 2, 3 or 4 outlets. Robust construction and splash protection prolong lifetime
Features
• Strong power output.
• Lightweight compared to traditional frequency converters.
• Optimal safety for users thanks to galvanic isolations.
• Low noise in use.
• 1 – 4 sockets for high frequency poker vibrators.
• Can also be used under rough conditions.
Certifications
• CE: Community Directives and subsequent amendments: 2006/42 / CE, 2004/108 / CE, 2006/95 / CE
• Conformity verified according to standard documents: CEI EN 60745-1, CEI EN 60745-2-12, UNI EN ISO12100
TECHNICAL DATA
| ELECTRIC FREQUENCY CONVERTERS | TEK-HFC 12 | TEK-HFC 25 | TEK-HFC 33 | TEK-HFC 66 |
| Power KVA | 0.8 | 1.8 | 4.7 | 6.6 |
| Intensity at 42V A | 11 | 25 | 55 | 66 |
| Number of phases (primary voltage) | 1 | 1 or 3 | 3 | 3 |
| Number of outlets | 1 | 2 | 3 | 4 |
| Weight kg | 18 | 31 | 70 | 85 |
| Protection index | IP55 | IP55 | IP55 | IP55 |
| Noise level dB(A) | 76 | 80 | 85 | 85 |
| Transport wheels | - | Optional | standard | standard |
| Part number | - | - | - | - |
| 230V-1-50Hz | 4812 0503 95 | 4812 0503 95 | - | - |
| 400V-3-50Hz | - | 4812 0503 93 | 4812 0510 51 | 4812 0510 51 |
| 380V-3-60Hz | - | 4812 0510 80 | 4812 0510 78 | 4812 0510 78 |
| Transport wheels | - | 4812 0503 99 |
