SHUTTER VIBRATORS ( PV-A VARIABLE FREQUENCY HIGH FREQUENCY MOTOR)
PV-A series products are especially for gross concrete applications; It is an ideal vibration motor developed for the compression of soft concrete
in which plywood and steel molds, curtain concrete, viaducts and similar iron reinforcement is dense without segregation.
Features
Product Features
•PV-A series vibration motors
• Building tunnel formworks
• Column, viaduct and curtain concrete molds
• Superstructure and infrastructure
• In concrete pipe molds
• On vibration tables
• All densely reinforced wooden and steel concrete molds, It is used for
compacting fresh, reliable, long-lasting, comfortable and problem-free concrete.

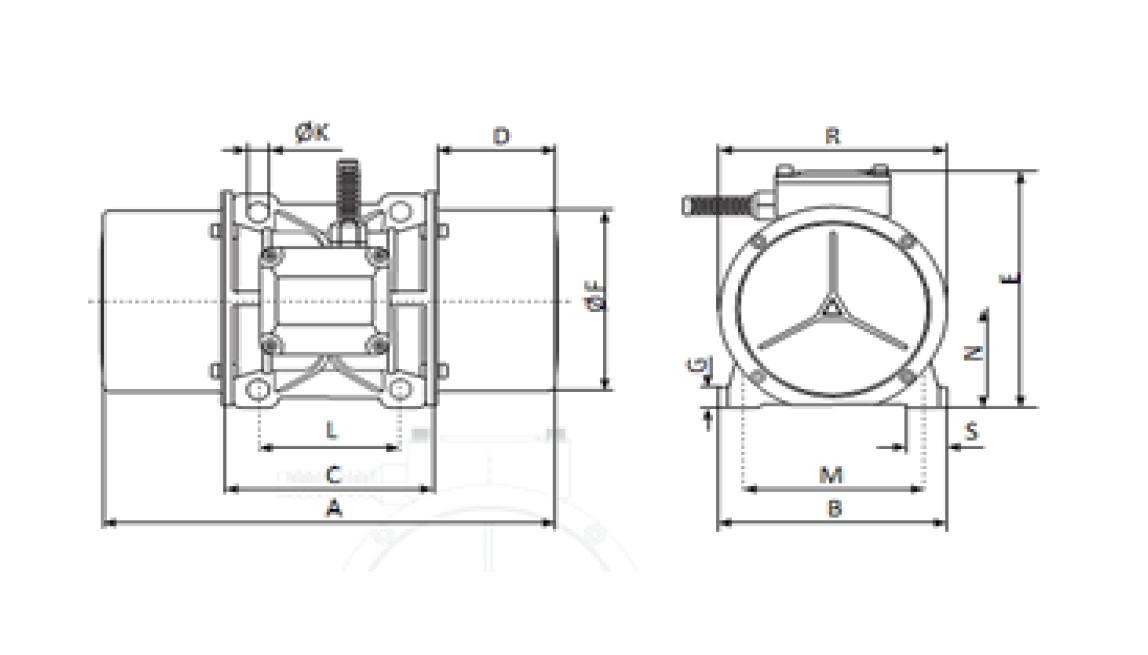

TECHNICAL DATA
Technical Data
PV-A 50 Hz - 3000 rpm / 200 Hz 6000 rpm
| Description | Mechanical Specifications | Electrical Specifications | ||||||||
| Model Type | Size | Centrifugal Force | Statical Moment | Weight | Input Power | nom. current | Voltage | frequency | RPM | |
| (Kg/F) | (Kn) | (Kgmm) | (Kg) | (V) | (A) | (W) | (Hz) | |||
| PV-1 400/42 | 20 | 392 | 3,84 | 9,7 | 8,3 | 400 | 8,7 | 42-55~ | 200 | 6000 |
| PV-A 400/230 | 20 | 311 | 3,05 | 30,9 | 8,3 | 400 | 113,6 | 230~ | 50 | 3000 |
| PV-A 400/400 | 20 | 387 | 3,79 | 338,4 | 8,3 | 400 | 1,1 | 400~ | 50 | 3000 |
| PV-A 400/115 | 20 | 374 | 3,66 | 9,2 | 8,3 | 400 | 3,4 | 115~ | 200 | 6000 |
It is used for compacting fresh, reliable, long-lasting, comfortable and problem-free concrete.
