ROLLER COMPACTOR

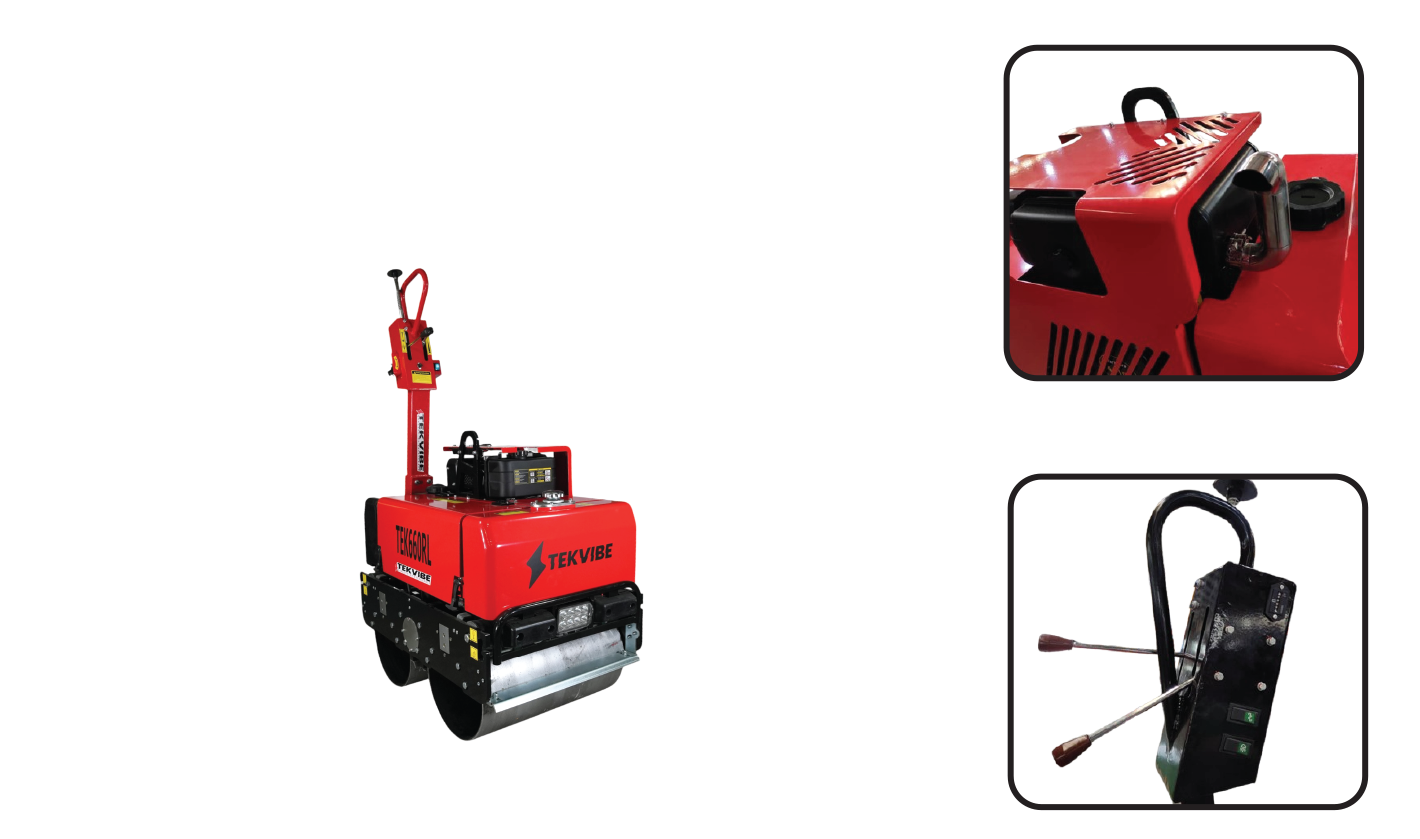

Twin-Drum Walk-Behind Roller comes with hydrostatic drive system. The TEK650 has a high compaction force but is also compact with well positioned controls making it easy to operate. Suitable for a wide range of soil and asphalt compaction applications. The Twin-Drum Walk -Behind Roller comes with hydrostatic drive system. The TEK650 has a high compaction force but it also compacts with well positioned control making it easy to operate. Suitable for a wide range of soil asphalt compaction applications.

Model	Engine Power (hp/kW)	Frequency (vpm)	Forward Travel Speed (km/hr)	Reverse Travel Speed (km/hr)	(kN Force)	Drum Width (mm)	Starting system	Dimensions (mm)			Weight (kg)
								W	H	L
TEK660RL	Loncin D440F 9.6 / 6.9	3300	> 3.9	> 2.1	20	650	Electric with Recoil	700	1093	2600	640
TEK660RL	Yanmar L100N 10 / 7.4	3300	> 3.9	> 2.1	20	650	Electric with Recoil	700	1093	2600	645
TEK760RL	Loncin D440F 9.6 / 6.9	3300	> 3.9	> 2.1	20	650	Electric with Recoil	700	1093	2600	740

Features

Product Features

Two large Poclain hydraulic drive pumps and a vibration pump from Sauer Danfoss
Air-cooled Loncin diesel engine: powerful and environmentally friendly.
Hydrostatic drive and vibration system
Hydrostatic adjustable excentric weights that are productive in both soil and asphalt applications.
Hydraulic pump for hydrostatic drive and steering: no V-belt or clutch.
Ergonomic vibration dampened operator handle, control panel with easy access.
Hydrostatic control lever and adjusting lever.

TECHNICAL DATA

Technical Data

	Lift Thickness	Vibreting Sheepsfoot Rammer	Static Sheepsfoot Grid Roller Scraper	Vibrating Plate Compactor Vibrating Roller Vibrating Sheepsfoot	Scraper Rubber-Tired Roller Loader Grid Roller
MATERIALS		IMPACT	PRESSURE With Kneadig	VIBRATION	KNEADING With Pressure
GRAVEL	12+	Poor	No	Good	Very Good
SAND	10+/-	Poor	No	Excellent	Good
SILT	6+/-	Good	Good	Poor	Excellent
CLAY	6+/-	Excellent	Very Good	No	Good
