PNEUMATIC MOLD EXTERNAL VIBRATORS(PVM SERIES)
 |  |  |
TECHNICAL DATA
Technical Data
| Model Type | Dıs Cap
| Agırlık Weight | Basın clı H ava Compresse dair | (*)Merkezkac Kuvveti/Frekans CentrifugalPower/Frequency | ||||||||||
| MM | MM | LBS | KG | PSI | BAR | CFM | m³/dk | Kgmm(m¹) | Kg/f | kN | Hz | VIBR.min | ||
| PVM 106 | 10 | 55,11 | 140 | 28,8 | 13 | 71 100 | 4,9 6,9 | 35,31 40,61 | 1,00 1,15 | 11,43 | 923 | 9,055 | 150 180 | 8.500 |
| PVM 108 | 10 | 55,11 | 140 | 29,3 | 13.2 | 71 | 4,9 | 40.61 | 1,00 | 15,19 | 1227 | 12,037 | 150 180 | 8.500 |
| PVM 110 | 10 | 55,11 | 140 | 29,7 | 13.4 | 71 100 | 4,9 6,9 | 45,90 51,20 | 1,00 1,15 | 18,99 | 1.534 | 15,049 | 150 180 | 8.500 |
| PVM 214 | 20 | 62,20 | 158 | 31,1 | 14,0 | 71 100 | 4,9 6,9 | 51,20 58,27 | 1,00 1,15 | 9,83 | 1.857 | 18,217 | 150 180 | 13.500 |
| PVM 216 | 20 | 62,20 | 158 | 32,0 | 14,4 | 71 100 | 4,9 6,9 | 56,50 63,56 | 1,00 1,15 | 17.29 | 3.267 | 32,049 | 150 180 | 13.500 |
| PVM 218 | 20 | 62,20 | 158 | 32,4 | 14,6 | 71 100 | 4,9 6,9 | 58,00 65,00 | 1,00 1,15 | 15,35 | 3.610 | 35,40 | 150 180 | 13.500 |
| PVM 220 | 20 | 62,20 | 158 | 32,8 | 14.8 | 71 100 | 4,9 6,9 | 60,03 67,09 | 1,00 1,15 | 25,98 | 4.082 | 41,025 | 150 180 | 12.500 |
| PVM 224 | 20 | 62,20 | 158 | 33,7 | 15.2 | 71 100 | 4,9 6,9 | 63,93 71,45 | 1,00 1,15 | 39,44 | 6.349 | 62,285 | 150 180 | 12.500 |
| PVM 226 | 20 | 62,20 | 158 | 33,7 | 15.2 | 71 100 | 4,9 6,9 | 63,93 71,45 | 1,00 1,15 | 39,44 | 6.349 | 62,285 | 150 180 | 12.500 |

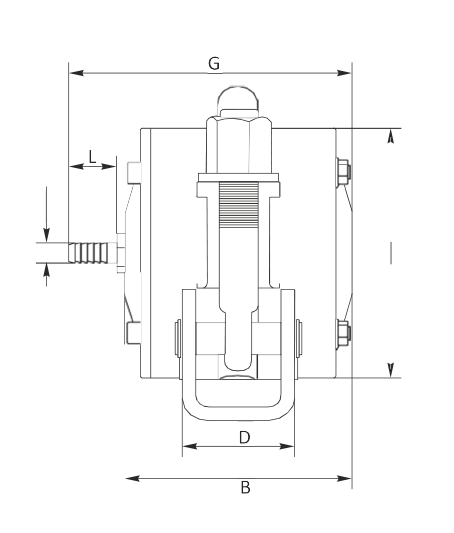

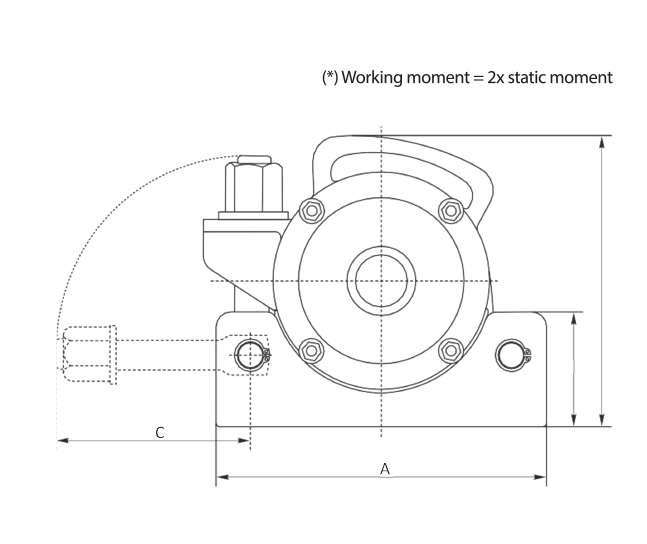

| Model Type | Govde Olculeri - Overall Dimensions (mm) | |||||||||
| A | B | C | D | E | F | G | L | OH | M | |
| PVM 10 Gov de Size | 240,5 | 92 | 145 | 71 | 190 | 83 | 121,5 | 26 | 12,75 | 140 |
| PVM 20 Go vde Size | 240,5 | 144 | 145 | 71 | 211 | 83 | 175,5 | 26 | 12,75 | 158 |

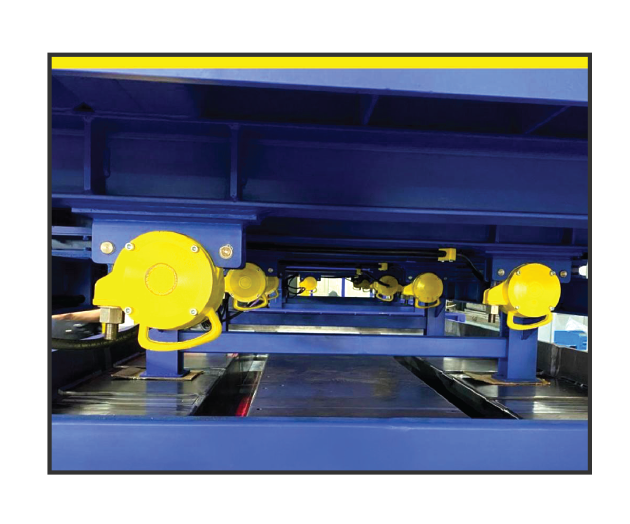

• It can be fixed with the several concrete casts. Its vibration places the daub and prevents the spaces which could be exist in the concrete.
• It can be fixed with the plate bunkers, so it helps the permanence of flow of the commodity.
• It can be fixed with the air transportation band conveyors. It improves the performance of the band.
• It can be used with sieve companies which arrange sand, gravel and aggregate.
