PLATE COMPACTOR (STANDARD) – PETROL / DIESEL

PLATE COMPACTOR (STANDARD) – PETROL / DIESEL

Image removed.

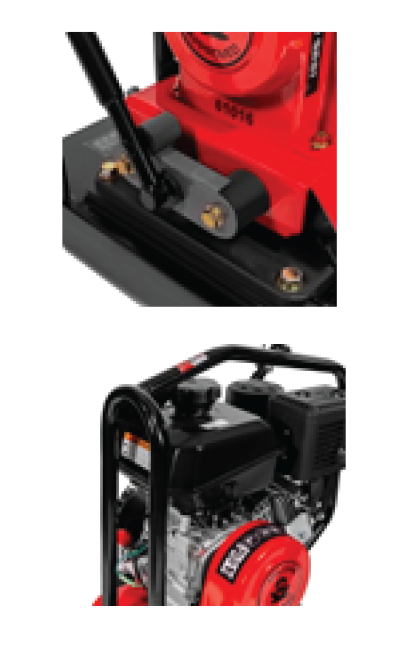

A heavy duty vibrating plate used for quick and reliable compaction of

sand, gravel, hardcore, paving and road surfacing. Ideal for general site use

 as well as DIY preparation of patios and driveways. A rubber base plate

is available for block paving work.

PLATE COMPACTOR (STANDARD)

TECHNICAL DATA

Technical Data
 TEK100-PLTEK100-PHTEK120-DL
PowerPetrolPetrolDiesel
EngineLoncin G200FHonda GX160LCD170F-D230F
Engine Power(Hp/Kw)4.8/3.54.8/3.56.5/4.8
Vibration(VPM)500065007000
Operating Width(MM)420X550420X550420X550
Impact Force12 kN12 kN12 kN
Weight100kg95kg120kg
Static Pressure(Kg/m2)410420440
Noise Level(db)9696108
Engine TypeForced Air -Cooled, 4 -Stroke Gasoline Engine
