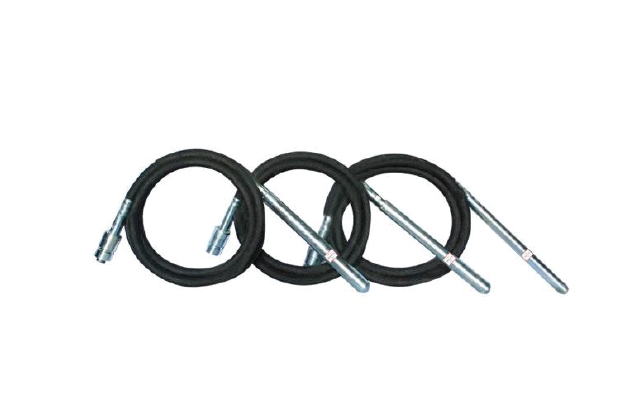

MECHANICAL POKER SHAFT(PIN/COUPLING)
Flexible shaft mechanical poker vibrators for high vibration power in concrete and designed to meet the toughest site
conditions. Available with a wide range of poker diameters from 25 to 68mm
Features
Product Features
• Single-piece rotating pendulum vibrator, generating 12000 rpm.
• Designed to the highest quality standard for long and trouble free working life.
• Over 6 meters of flexible shaft made of special spun steel and steel coil casing hose reinforcement.
• Choice of petrol or diesel power units with compact protective steel frame, easy to move on sites.
• Delivered with a universal Two-Dog drive coupling (compatible with Dynapac and Wacker), also
Asian coupling kit available
• No special maintenance needed.
TECHNICAL DATA
Technical Data
| MODEL | TEK-MP-1” (25mm) | TEK-MP-1.5” (40MM) | TEK-MP-2” (50mm) | TEK-MP-2.5” (60mm) |
| Flexible Shaft (Dia. x Length) | 25mm x 6m | 40mm x 6m | 50mm x 6m | 60mm x 6m |
| Vibrating Head (Dia. x Length) | 1” x 38mm | 1.5” x 46.5mm | 2” x 49mm | 2.5” x 49mm |
| Vibration Frequency(VPM) | 13,000-14,000 | 12,000-13,000 | 11,000-12,000 | 11,000-12,000 |
| Vibration Amplitude | 0.8mm | 1.60mm | 2.40mm | 2.40mm |
| Centrifugal Force | 2,650 n | 3,000 n | 7,000 n | 7,000 n |
