MATERIAL SHIFTING BUCKET

MATERIAL SHIFTING BUCKET

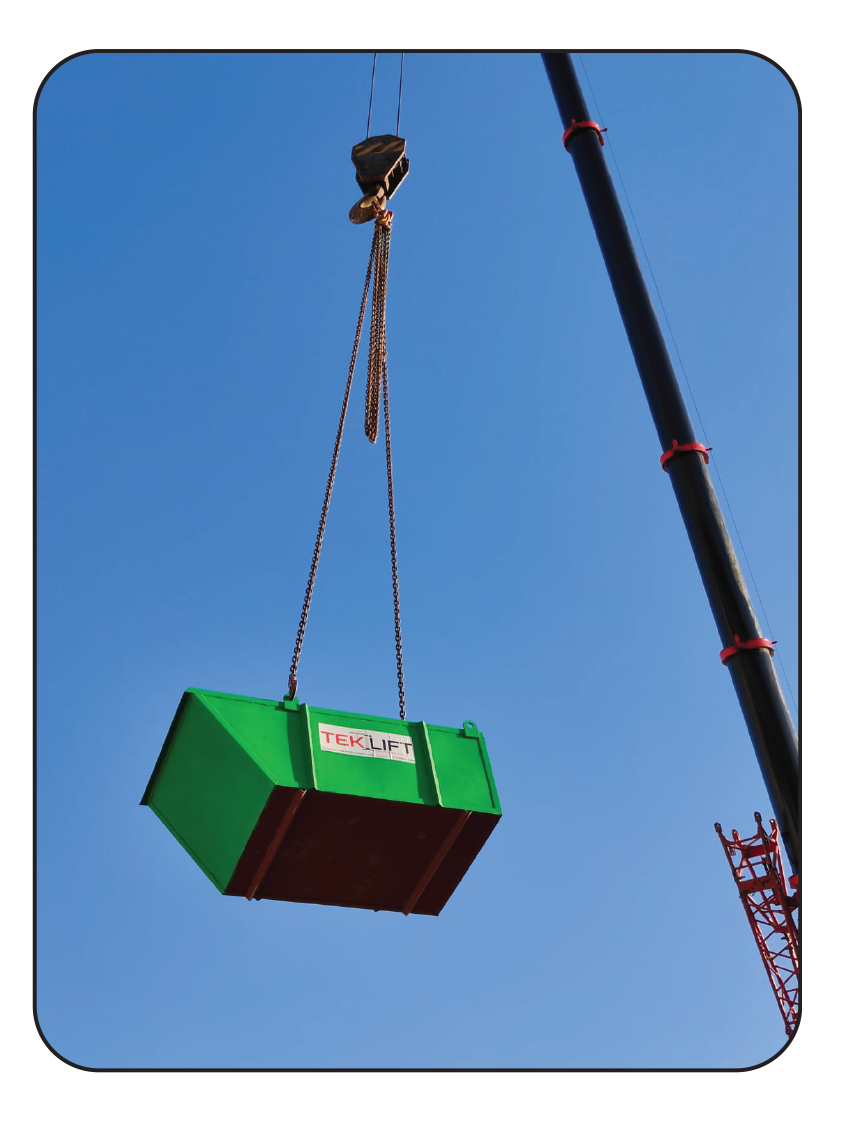

These material buckets are used for transport of heavy material such as sand ,gravel, metal and slaImage removed.g. The bucket comes standard with
strong frame ,reasonable mechanical desiImage removed.gn for lifting lugs. Our skips are fabricated according to certified drawings and supplied with TUV Safety Certificate. Skip Bucket is manufactured using mild steel plate to allow transportation of heavy materials such as sand, gravel, excavation waste and scrap metal. For loading and unloading of material at various floors and levels of the Construction site from Tower Cranes directly.100% safe working structure





material

TECHNICAL DATA

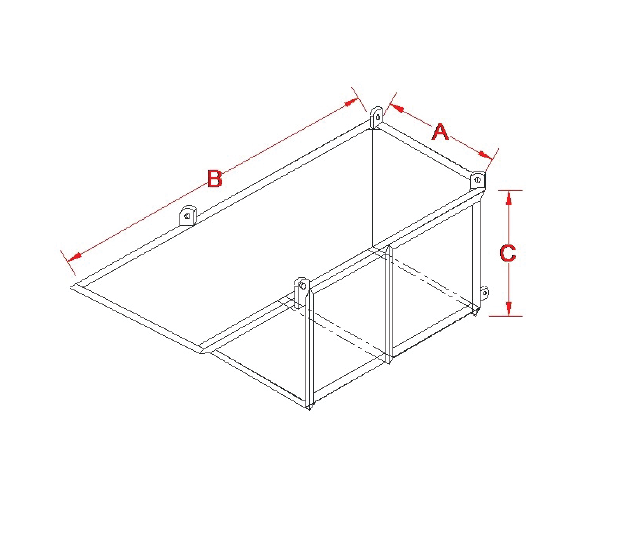

Technical Data
 TEK-MSB1TEK-MSB2
Capacity(Lts/Cbm)1000/12000/2
Length -B-(mm)22002200
Width -A-(mm)12001200
Height -C-(mm)750750
SWL(Ton)2.04.0
Eye Pad Thickness(mm)1220
Weight(kg)250480
