HIGH SPEED ELECTRICAL VIBRATORS

HIGH SPEED ELECTRICAL VIBRATORS

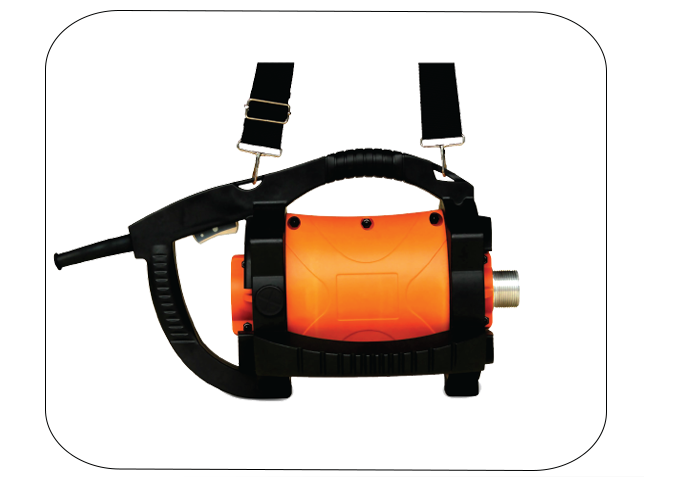

The Poker Vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar,
especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected
from the four available products.

electrical vibrators

Features

Product Features

  • Image removed.

    Double Inulated IP44

  • Electro Magnetic Complaint
  • High Impact Plastic Housing

  • Quick Release Coupling



    ModelVoltageInput
    Watts    		Output
    Watts    		EfficiencyPower
    Factor    		F.L.C
    Amps    		Start
    Amps    		Weight

    Loaded

    R.P.M

    		Unloaded
    R.P.M    		Noise
    Levels    		Dimensions
    Efficiency mm
    TEK-115.C115/1/50/60160010000.710.8713 amp20.04.8 kg120001800088 dBa50x354x205
    TEK-230.C230/1/50/60160010000.710.876.5 amp10.04.8 kg120001800088 dBa150x354x205

TECHNICAL DATA

Technical Data
MODELTEK-HP-25/6TEK-HP-32/6TEK-HP-40/6TEK-HP-50/6TEK-HP-60/6
Head diameter/mm25mm32mm   40mm48mm58mm
Head length/mm
 		285366335320360
Head weight/kg0.8 kg1.7 kg2.2 kg3.2 kg4.5 kg
Drive length6 mtr6 mtr6 mtr6 mtr6 mtr
Drive Speed/pm1200012000120001200012000
Shaft x cover /mm8 x 288 x 288 x 288 x 288 x 28
Drive weight/kg7.0 kg8.0 kg8.0 kg8.0 kg8.0 kg
Poker & Drive Weight7.8 kg8.7 kg10.2 kg11.2 kg12.5 kg
Frequency/rpm1400013750135001250012000
Amplitude
 		1.01.52.02.02.0
Centrifugal Force Newtons8832060372654916472
Centrifugal Force/Kg90210380550660
Weighted vibration m/s²121.251.31.451.6
Output maximum m³/h1014172835
S P Level dB(A)93dB(A)94dB(A)95dB(A)93dB(A)93dB(A)

The machine is perfect if you are pouring columns and beams, footings or other form work. It is easy to use by lowering the poker to the bottom of the pour and gradually working your way up to the surface working it slowly back and forth until all the air has been removed.
