CONCRETE SKIP BUCKET
High quality concrete bucket with rubber hose ,pull rope for opening discharge gate and closed automatically by spring . Length rubber hose 2 metres, diameter 200mm.
- Suitable for Crane Manual operation is lifted with a crane.
- Tank capacity available of 500, 1000, 2000 & 5000 liters.
- Equipped with protection mechanism against spontaneous opening (spring)
- Equipped with handle for opening the concrete supply
- Equipped with handle for opening the concrete supply
TECHNICAL DATA
Technical Data
| TEK-CB1 | TEK-CB2 | TEK-CB3.5 | |
| Type | Square/Round | Square/Round | Square/Round |
| Capacity(Lts/Cbm) | 1000/1 | 2000/2 | 3500/3.5 |

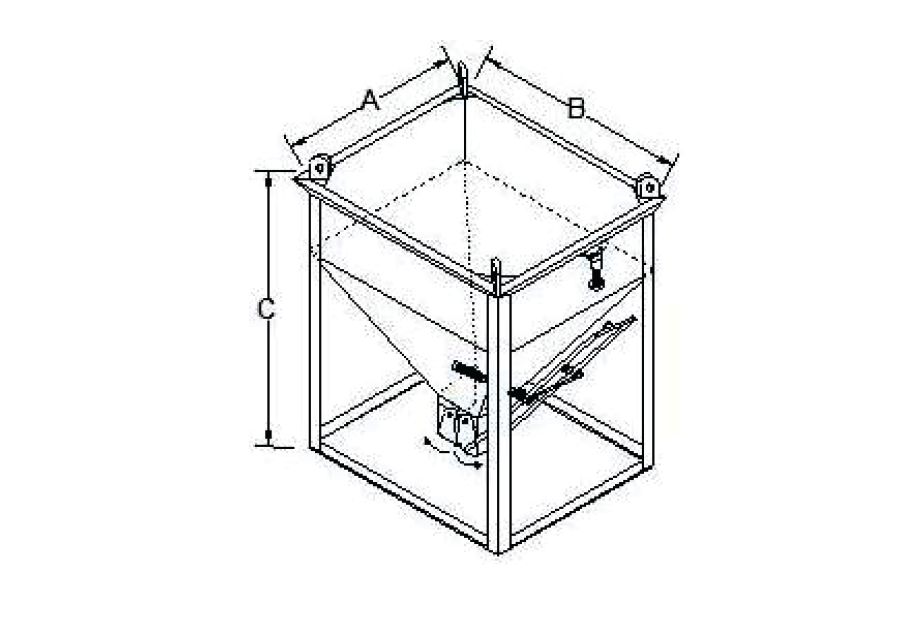

| Length -A-(mm) | 1250 | 1550 | 1700 |
| Width -B-(mm) | 1250 | 1550 | 1700 |
| Height -C-(mm) | 1600 | 1600 | 1680 |
| SWL(Ton) | 2.4 | 4.8 | 6-6 .5 |
| Eye Pad Thickness(mm) | 12 | 20 | 25 |
| Weight(kg) | 290 | 400 | 680 |
